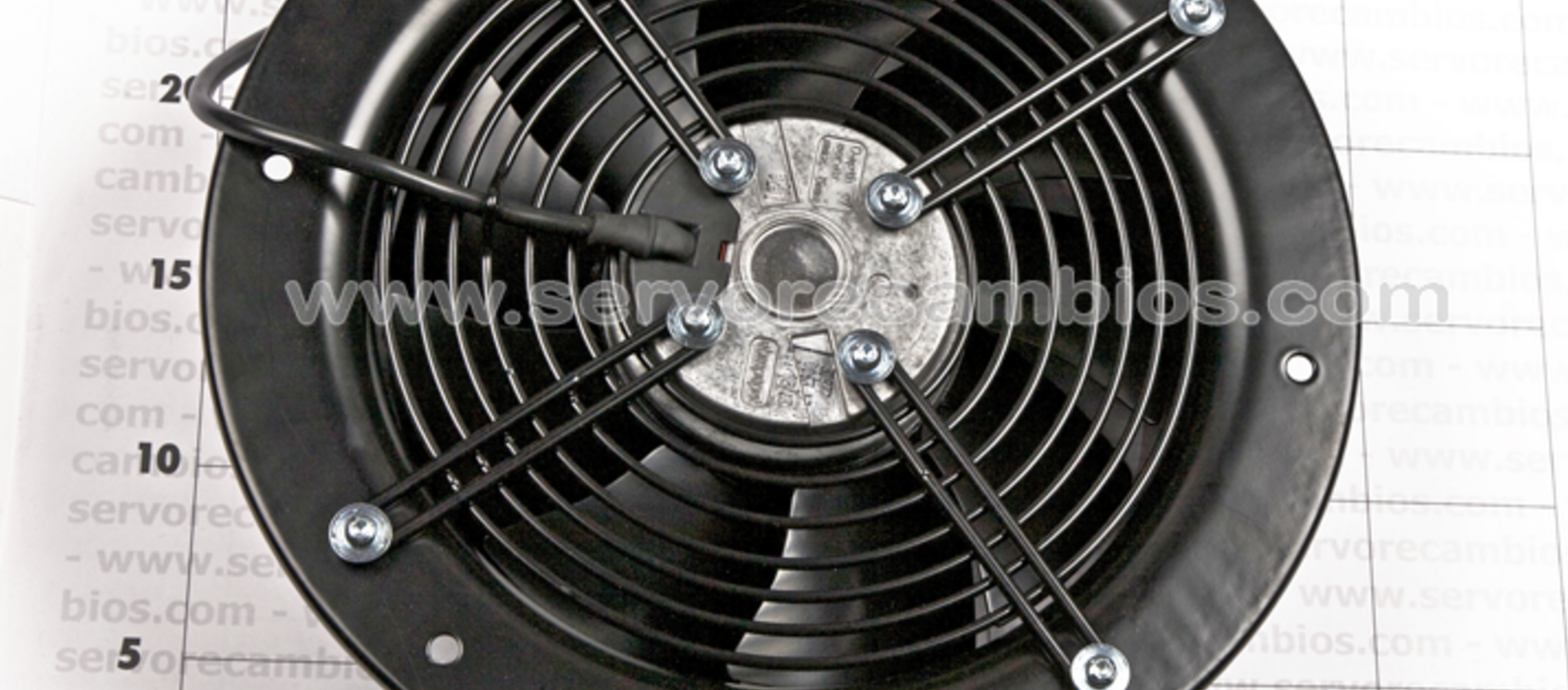

Ventiladores EBMPAPST AXIALES "S" - 200 Ø.
Monofásicos 230 v
| CÓDIGO | DISEÑO | Hz | m³/h | R.P.M. | W |
|---|---|---|---|---|---|
| A2E 200-AK38 -01 | A | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| A2E 200-AI38 -01 | A | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| S2E 200-BK38 -01 | S | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| S2E 200-BI38 -01 | S | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| W2E 200-CK38 -01 | W | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| W2E 200-CI38 -01 | W | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| S2E 200-AK38 -01 | S(b) | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 | ||
| S2E 200-AI38 -01 | S(b) | 50 | 910 | 2650 | 60 |
| 60 | 1030 | 3000 | 75 |
Monofásicos sin condensador
| CÓDIGO | DISEÑO | Hz | m³/h | R.P.M. | W |
|---|---|---|---|---|---|
| A4S 200-AK04 -01 | A | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| A4S 200-AI04 -01 | A | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| S4S 200-BK04 -01 | S | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| S4S 200-BI04 -01 | S | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| W4S 200-CK04 -01 | W | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| W4S 200-CI04 -01 | W | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| S4S 200-AK04 -01 | S(b) | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 | ||
| S4S 200-AI04 -01 | S(b) | 50 | 455 | 1370 | 30 |
| 60 | 530 | 1600 | 26 |
Trifásico 230 - 400 v
| CÓDIGO | DISEÑO | Hz | m³/h | R.P.M. | W |
|---|---|---|---|---|---|
| A2D 200-AK18 -01 | A | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| A2D 200-AI18 -01 | A | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| A4D 200-AK14 -01 | A | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| A4D 200-AI14 -01 | A | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| S2D 200-BK18 -01 | S | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| S2D 200-BI18 -01 | S | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| S4D 200-BK14 -01 | S | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| S4D 200-BI14 -01 | S | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| W2D 200-CK18 -01 | W | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| W2D 200-CI18 -01 | W | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| W4D 200-CK14 -01 | W | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| W4D 200-CI14 -01 | W | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| S2D 200-AK18 -01 | S(b) | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| S2D 200-AI18 -01 | S(b) | 50 | 910 | 2650 | 65 |
| 60 | 1030 | 3000 | 60 | ||
| S4D 200-AK14 -01 | S(b) | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 | ||
| S4D 200-AI14 -01 | S(b) | 50 | 490 | 1450 | 22 |
| 60 | 570 | 1700 | 20 |
